Metric Thread Tap Drill Size

tap drill size M3 M4 M5 M6 M7 M8 M9 M10 M12 M14 M16 M18 M20 M24 bolt hole size
tap drill size



A threaded core hole is a hole into which an internal thread is cut. The core hole must always be slightly smaller than the nominal diameter of the thread to be cut.



As a rule of thumb for the core hole the following applies:



Thread Nominal diameter - Thread pitch = drill size diameter (Core hole diameter or hole size)



Example: M8 tap drill size

8mm - 1.25 mm = 6.8mm (M8 tap drill size)



A distinction is made between standard threads and fine threads for the drill size diameter. The tap drill size table here shows the core hole size for metric standard threads. The thread tap drill size table for fine threads can be found here.





werbung links1

Metric Thread - Tap Drill Size table

Metric thread

size

hole size or drill size

(mm)

pitch

regular thread (mm)

M1 drill size

0,75 0,25
M1,1 drill size 0,85 0,25
M1,2 drill size 0,95 0,25
M1,4 drill size 1,1 0,30
M1,6 drill size 1,3 0,35
M1,8 drill size 1,5 0,35
M2 drill size 1,6 0,40
M2,2 drill size 1,8 0,45
M2,5 drill size 2,1 0,45
M3 drill size 2,5 0,50
M3,5 drill size 2,9 0,60
M4 drill size 3,3 0,70
M5 drill size 4,2 0,80
M6 drill size 5,0 1,00
M7 drill size 6,0 1,00
M8 drill size 6,8 1,25
M9 drill size 7,8 1,25
M10 drill size 8,5 1,50
M12 drill size 10,2 1,75
M14 drill size 12 2,00
M16 drill size 14 2,00
M18 drill size 15,5 2,50
M20 drill size 17,5 2,50
M22 drill size 19,5 2,50
M24 drill size 21 3,00
M27 drill size 24 3,00
M30 drill size 26,5 3,50
M36 drill size 32 4,00
M42 drill size 37,5 4,50
M48 drill size 43 5,00
M56 drill size 50,5 5,50
M64 drill size 58 6,00

* All information without guarantee.

werbung links2

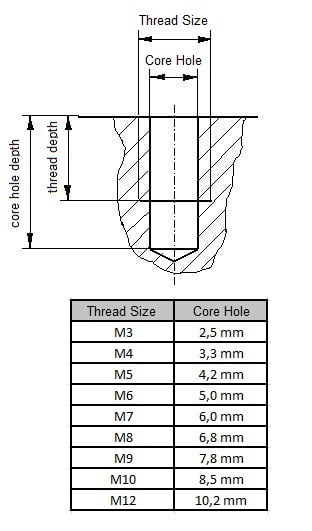

Metric Thread - Core Hole Depth

Metric Thread, Core Hole M3, Core Hole M4, Core Hole M5, Core Hole M6, Core Hole M7, Core Hole M8, Core Hole M9, Core Hole M10, Core Hole M12
Metric Thread - Core Hole and Core Hole Depth



The thread length should be at least twice and at most three times the nominal thread diameter in order to obtain a tight screw connection. The core hole depth must therefore be slightly more than the desired thread length so that the tap can cut the thread completely. A thread length of more than three times the nominal thread diameter should be avoided, as it does not lead to a better screw connection and has real disadvantages. One should know that 3 to 4 threads bear the full load when screwing! All other threads are so to speak without function.



For example: "M3 core hole". An M3 thread has a nominal diameter of 3mm. This results in a thread length of 6mm to 9mm for (2 x d). As core hole depth you can choose 9mm here.

werbung links3

Table thread length and core hole depth

The required core hole depth depends on the recommended thread length (thread depth). The recommended thread length (thread depth) must be adhered to in order to obtain a secure tight screw connection. The table below shows the thread length (thread depth) from min. to max. A shorter thread means that the screw connection does not meet the required connection force. A longer thread has technically no added value for the screw connection and does not result in a higher connection force.



Thread depth table
Thread: Recommended thread length: Core hole depth:
M3  4,5 - 9,0 mm  9 mm
M4  6,0 - 12 mm  12 mm
M5  7,5 - 15 mm  15 mm
M6  9,0 - 18 mm  18 mm
M7  10,5 - 21 mm  21 mm
M8  12,0 - 24 mm  24 mm
M9  13,5 - 27 mm  27 mm
M10  15,0 - 30 mm  30 mm
M12  18,0 - 36 mm  36 mm

* All information without guarantee.
